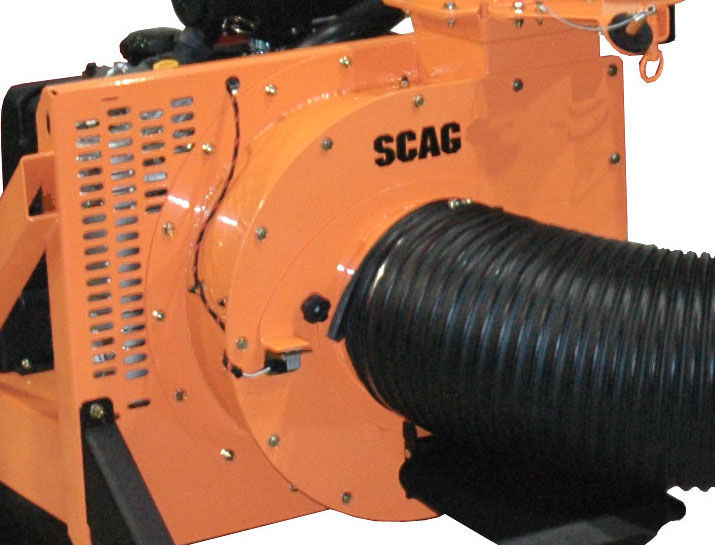

SCAG POWER EQUIPMENT INDUSTRIAL SKID-MOUNT TRUCK LOADER
SCAG POWER EQUIPMENT INDUSTRIAL SKID-MOUNT
BUILT TO WORK
Powered by a 29 hp Vanguard® Big Block gasoline, V-twin engine, nothing escapes the Industrial Skid-Mount and its unmatched strength. With safe and convenient transportation features and a high-capacity fuel tank, this machine is built to optimize the productivity of your operation by sticking around for the long haul.
4-Blade Impeller
FABRICATED AND BALANCED, 20-INCH, 4-BLADE IMPELLER
Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design.
Smart Construction and Convenient Serviceability
EASY ACCESS FOR WEAR PLATE AND IMPELLER SERVICE
1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.
Locking Boom Arm and Intake Nozzle
SAFE AND CONVENIENT TRANSPORT
Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.
Ambidextrous Nozzle Handle
EASY HANDLING FROM EITHER SIDE: THE CHOICE IS YOURS
Padded, large-diameter handle is designed for increased leverage and easy maneuverability.
12" Steel Intake Nozzle
TAKE IT ALL IN
Large, replaceable intake nozzle is beveled to make debris pickup easy.
Skid-Mount
STANDARD 4" SKID RISERS
Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.
Large-Capacity Fuel Tank With Built-In Gauge
HOURS AND HOURS OF RUN TIME
High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.
Powerful Engine
29 HP VANGUARD BIG BLOCK
Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start.
| Product Specification | Industrial Skid-Mount |
|---|---|
| Fuel Capacity / Tank | 5.5 gallons – plastic tank with built-in fuel gauge |
| CFM Output | 4,680 |
| Frame Construction | All-steel, welded |
| Impeller Construction | 4-blade, 3/8″-thick blades, all-steel, welded |
| Impeller Mounting | Tapered locking hub |
| Impeller Diameter / Width | 20″ / 6.5″ |
| Blower Housing Construction | Removable back panel for easy impeller and wear plate access |
| Blower Housing Width | 7.5″ |
| Blower Housing Wear Plates | Standard: 1/4″-steel, replaceable |
| Hose Specifications | 120″ length, 12″-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip |
| Unit Mounting | 4″ steel skid risers |
| Discharge Tube | Clear thermoplastic, 8″ diameter |
| Throttle Control | Commercial-grade, all-steel mechanicals, plastic debris cover |
| Highway Ready | n/a |
| Axle | n/a |
| Tires | n/a |
| Trailer Width | n/a |
| Height | 75″ (without skid mount attached) |
| Weight | 675 lb |
| Warranty | 2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental |
| MSRP | $10.559.99 |
**Pricing Does Not Include: PDI,HST, or FREIGHT**
**Actual product may differ from photos.**
**FINANCING AVAILABLE O.A.C**
